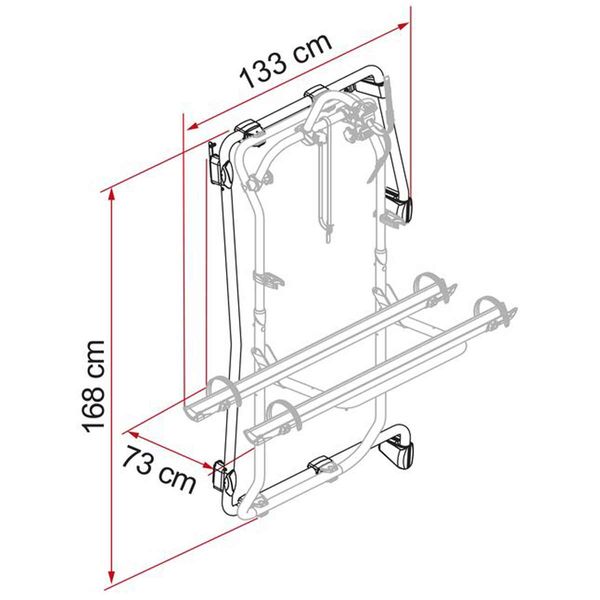

Fiamma Carry-Bike Frame designed for installation on Crafter Conversions using dedicated installation kit (included) This bike rack carries two standard bikes or three bikes (two ebikes) with the addition of Fiamma parts.

Dedicated installation bars for each type of vehicle:

This Fiamma kit is designed for fitting a Carry-Bike Frame  onto VW Crafter II series / MAN TGE (≥ 2017 - H3 / H4) vehicles (Not suitable for vehicles with 270° hinge system).

The kit allows mounting of the rail support in three positions: standard, middle and low. For middle and low positioning, the license plate bar with lights must be used.

Supplied with:

• Fiamma kit for fitting a Carry-Bike Frame
• 2 x Rail Plus (Bike rails)
• Bike-Block Pro 1 (Bike locking system)
• Bike-Block Pro 3 (Bike locking system)
• Security strip

Specs:

• Colour: Deep Black
• Bikes carried standard: 2
• Bikes carried max.: 3
• Max load: 50kg
• E-Bike: Yes 2
• Weight: 9.4kg
• Distance between rails: 15cm
• Licence Plate Carrier: Supplied separately

*To add a third bike to this frame you will need the following items:

• 1 x Rail Plus (Bike rails)
• Bike-Block Pro 2 (Bike locking system)
